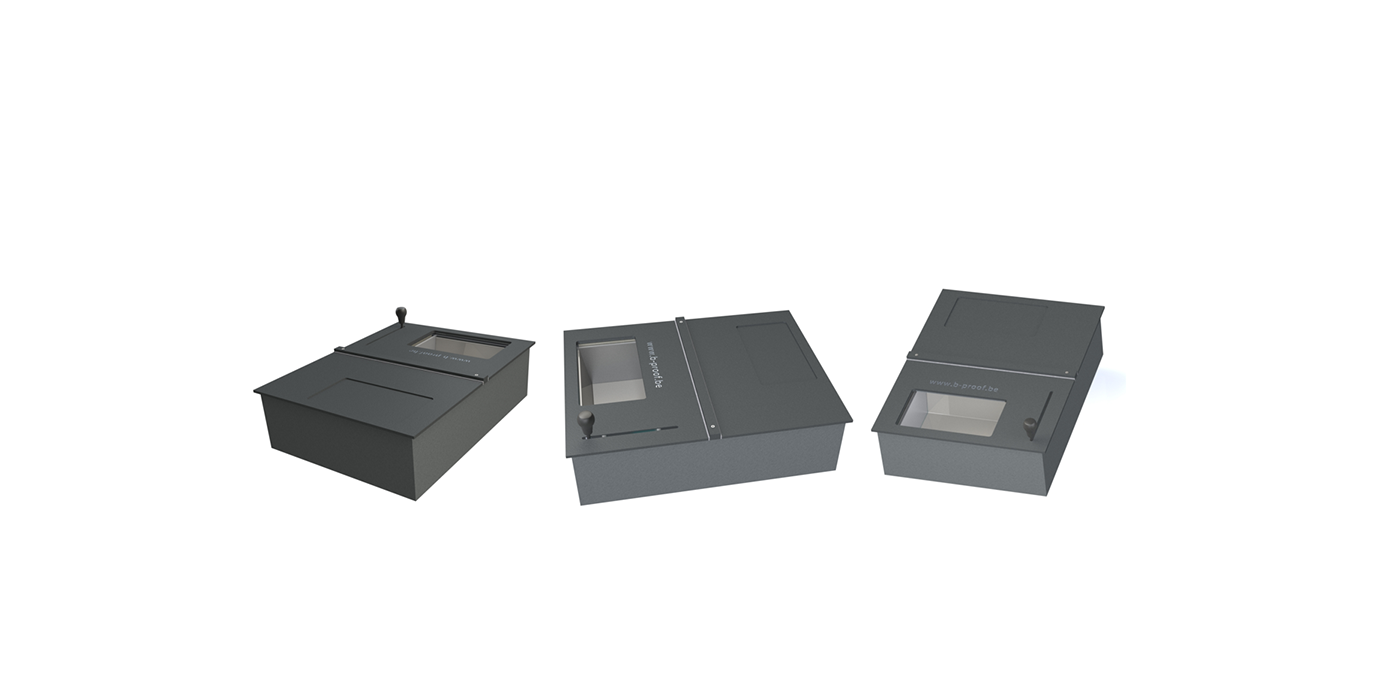

PTD FB5+FB6-150

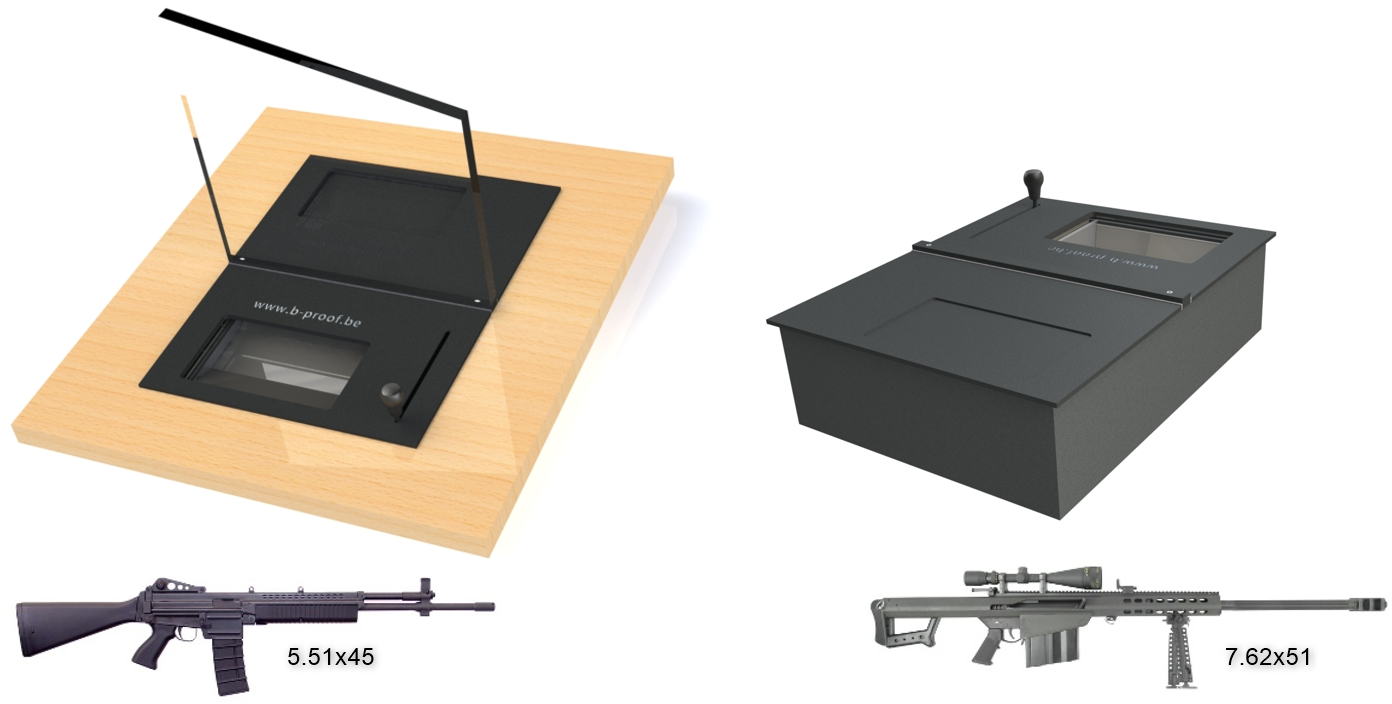

This pass-through drawer is bulletproof certified FB5 + FB6 NS according to the European standards EN 1522 in the year 2020.

Its concept guarantees a 100% bullet resistance when both open or closed due to its counterbalancing chariots.

This drawer has an automatic locking system in open and closed position so the operator is in full control at all times. (e.g. explosives ).



SPECIFICATIONS:

  • Built from bulletproof sheet material FB5+FB6 (“lightweight” champion 80kg!)
  • Automatic locking system in both open and closed position
  • Made for transferring documents and small packages
  • Black structural color finish

OUTSIDE DIMENSIONS :

  • Width : 600mm
  • Height : 205mm
  • Depth : 778mm

INSIDE DIMENSIONS OF THE DRAWER :

  • Width : 315mm
  • Height : 150mm
  • Depth : 283mm

 OPTIONS :

  • Version in bulletproof class FB7
  • Accompanying bracket with stacking racks
  • RAL color finish or stainless steel
  • Accompanying complete intercom system
  • Customizable



Download the brochure here

Download the technical drawing here.



This model exist also in a smaller version model PTD FB5+FB6-35
