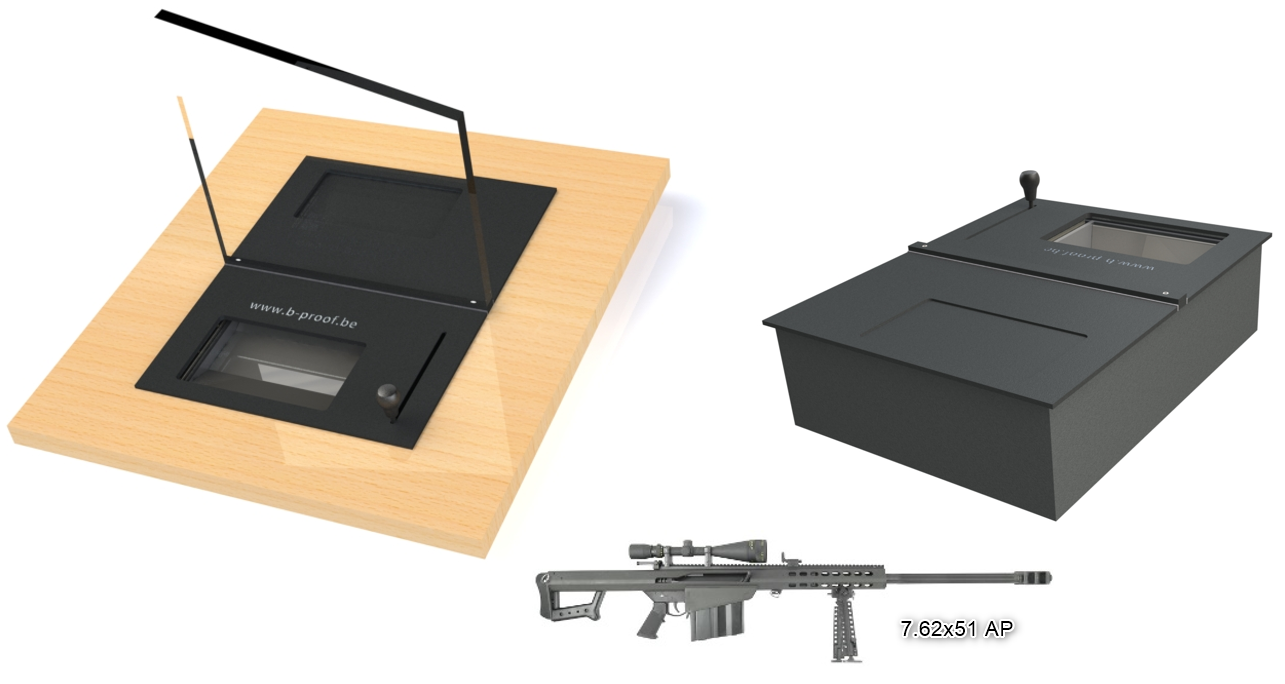

PTD FB7-150

This pass-through drawer is bulletproof certified FB7 NS according to the European standards EN 1522 in the year 2022.

Its concept guarantees a 100% bullet resistance when both open or closed due to its counterbalancing chariots.

This drawer has an automatic locking system in open and closed position so the operator is in full control at all times. (e.g. explosives ).

SPECIFICATIONS:

• Built from bulletproof sheet material FB7 (“lightweight” champion 120kg!)
• Automatic locking system in both open and closed position
• Made for transferring documents and small packages
• Black structural color finish

OUTSIDE DIMENSIONS :

• Width : 600mm
• Height : 205mm
• Depth : 778mm

INSIDE DIMENSIONS OF THE DRAWER :

• Width : 315mm
• Height : 150mm
• Depth : 283mm

 OPTIONS :

• Version in bulletproof class FB5-FB6
• Accompanying bracket with stacking racks
• RAL color finish or stainless steel
• Accompanying complete intercom system
• Customizable

Download the brochure here

Download the technical drawing here.

This model exist also in a smaller version model PTD FB7-35
